Asynchronous motors
\
B34 motor
B34 motor
Rated output (kw)
4
(7)
3
(7)
2.2
(11)
1.5
(13)
1.1
(12)
0.75
(8)
7.5
(2)
5.5
(2)
0.55
(6)
0.37
(6)
0.25
(4)
0.18
(2)
Poles
4
(29)
2
(26)
6
(25)
IP classification
IP69
(48)
IP56
(32)
Voltage connection (Δ/Y)
400/690V
(11)
230/400V
(69)
Cooling
TEFC
(44)
TENV
(36)
Terminal box
with terminal box
(80)

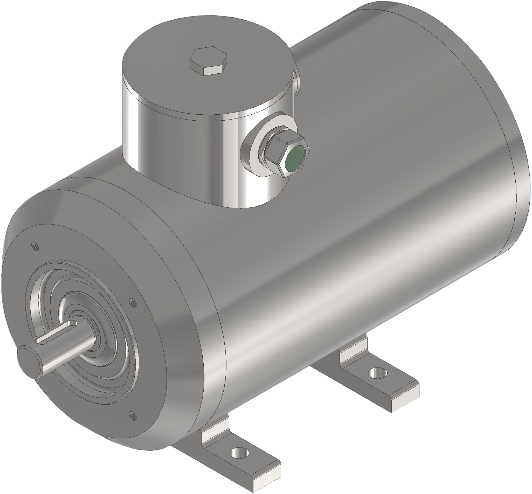

Motron stainless steel motor
MSE3-71MA 6 0.18kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
890
Rated output (kW)
0.18
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
1.9
Rated cument (A)
0.63
Mounting
B34
Poles
6
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
63.9%
MSE3-71MB 4 0.25kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
1412
Rated output (kW)
0.25
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
1.7
Rated cument (A)
0.73
Mounting
B34
Poles
4
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
73.5%
MSE3-71MB 6 0.25kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
890
Rated output (kW)
0.25
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
2.6
Rated cument (A)
0.82
Mounting
B34
Poles
6
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
68.6%
MSE3-71MA 2 0.37kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
2769
Rated output (kW)
0.37
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
1.3
Rated cument (A)
0.92
Mounting
B34
Poles
2
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
73.8%
MSE3-71MC 4 0.37kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
1408
Rated output (kW)
0.37
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
2.5
Rated cument (A)
1.07
Mounting
B34
Poles
4
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
77.3%
MSE3-80MA 6 0.37kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
906
Rated output (kW)
0.37
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
3.8
Rated cument (A)
1.11
Mounting
B34
Poles
6
Certifications
CE/UKCA
Shaft diameter (mm)
19
Cooling
TENV
Efficiency standand
73.5%
MSE3-71MB 2 0.55kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
2790
Rated output (kW)
0.55
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
1.9
Rated cument (A)
1.31
Mounting
B34
Poles
2
Certifications
CE/UKCA
Shaft diameter (mm)
14
Cooling
TENV
Efficiency standand
77.8%
MSE3-80MB 4 0.55kw 230/400V 50Hz IP69 TENV
IM B34, face mounted, foot mounted，with terminal box, TENV
IP classification
IP69
Speed (RPM)
1429
Rated output (kW)
0.55
Voltage connection (Δ/Y)
230/400V
Nominal torque (Nm)
3.7
Rated cument (A)
1.4
Mounting
B34
Poles
4
Certifications
CE/UKCA
Shaft diameter (mm)
19
Cooling
TENV
Efficiency standand
80.8%
